Sqlite Database Recovery

Recovery of Sqlite database means the restoration of a lot of lost crucial entries made into a very essential database. Sqlite is a highly used and implemented platform for/by applications and various operating systems which makes it one of the most essential data storing database file. Right from, computer operating systems, application data storage, to mobile operating systems, Sqlite is everywhere. Though, the ACID property complying database doesn't really get damaged very easily. But when it does, there is no manual way to bring it back into a stable condition. Thus, damage caused to such a database is considered unaffordable for being irreversible.

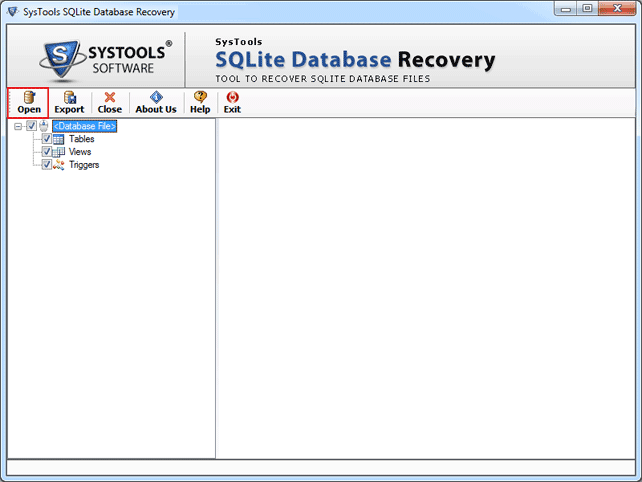

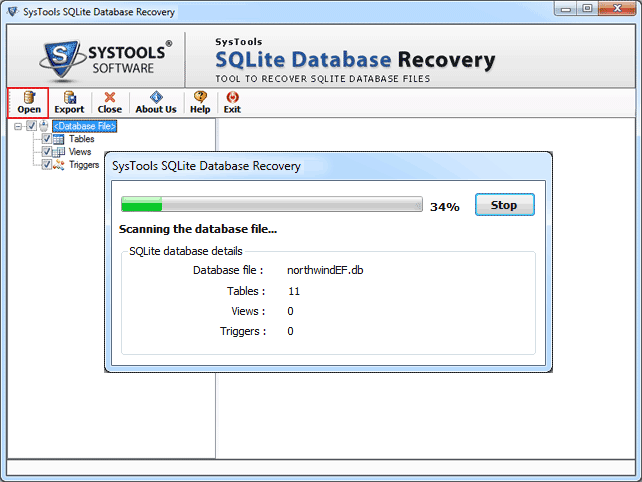

The Software proves to be a dependable and intellectual approach. the sqlite repair tool can fix Sqlite database from unresolvable issues and make it accessible all over again. Built to serve Sqlite file repair from any given corruption makes the tool a successful selection. The application can be chosen for the recovery of Sqlite database of any application, operating system, or device as it is capable of processing and fixing database of any size. Besides the lack of a manual procedure to fix, the tool individually is a completely well integrated and versatile solution that offers recovery to and for Sqlite DB of any platform or of any platform such as sqlite for android, windows, Linux, mac, Ios, chrome, firefox etc In addition to that, the provision for a demoware version in Sqlite File Recovery makes it feasible for users to first examine the procedure with a test database and proceed with purchase once through with the Sqlite Database Recovery and familiar with its provisions.

Sqlite is an SQL based relational database management system contained in C- programming. Its exclusive features facilitate zero configuration, transaction oriented and a thread safe database engine. Atomicity, consistency, isolation and durability executed by Sqlite make the database fully robust. The data in Sqlite database is stored in tables that contain multiple fields and data types and is accessed through the SQL commands on any Sqlite supportive system.

Components Of Sqlite:

Sqlite architecture is inclusive of seven major component subsystems, also referred to as modules. These component subsystems are divided into two sections, namely, frontend parsing system and a backend system.

Frontend:

The frontend system is responsible to preprocess SQL statements and Sqlite commands that are sent as input by different applications. It analyses these statements and commands, optimizes them, and further generates corresponding Sqlite internal byte code programs that can be executed by backend.

The frontend section further comprises of three modules, discussed as following.

1) Tokenizer:

When an SQL statement contained in a string is to be executed, it is passed to the tokenizer which is responsible to break the original string into tokens and pass them to the parser, one by one. The tokenizer is coded in C programming language, in the file tokenize.c.

2) Parser:

The function of the parser is to analyze the tokens produced by the tokenizer and further analyze the structure of the statement. It then generates a parse tree. The parser consists of an optimizer that will restructure the parse tree, and searches for an equivalent parse tree to produce an effective byte code program.

3) Code Generator:

Once the parser has assembled the tokens into complete SQL statements, it requests the code generator to generate virtual machine code that will further execute the SQL statements request. The code generator consists of multiple files. Code generation for expressions is handled by expr.c and for Where clauses (SELECT, UPDATE & DELETE statements) is handled by where.c. Also, attach.c, insert.c, select.c, delete.c, update.c and trigger.c are the files that handle code generation of SQL statements having same names.

Backend:

The function of Backend engine is to interpret byte code programs and is responsible for the effective database processing. This section is inclusive of four modules.

1) Virtual Machine:

The virtual machine executes the program generated by the code generator. In short, VM module is the internal byte code language interpreter. It can be called as the manipulator of data and i8s contained in a single source file vdbe.c. The virtual machine header file vdbe.h defines an interface between the virtual machine and Sqlite library. Database for a VM is a collection of tables and indices, where table or index is a set of tuples or records.

2) B/B+ Tree:

The database is maintained on the disk by B tree implementation that is found within the source file btree.c. Each tuple set is organized by a tree data structure in tree data structure in an ordered manner. It organizes tables and indices in B+ and B trees, respectively. It allows virtual machine to insert, search and delete tuples, create new trees and delete old ones.

3) Pager:

A page oriented abstraction of the database file is provided by pager module. It maintains a cache of the database pages that are used by B/B+ tree modules. This module facilitates features such as rollback and atomic commit abstraction and also implements locking. The source file pager.c contains the code for implementation of the page cache.

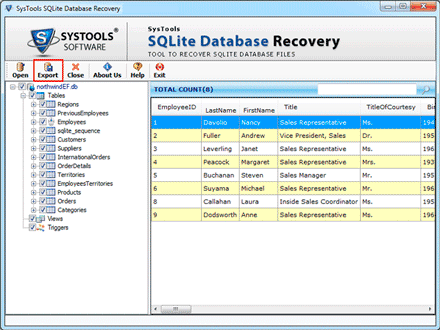

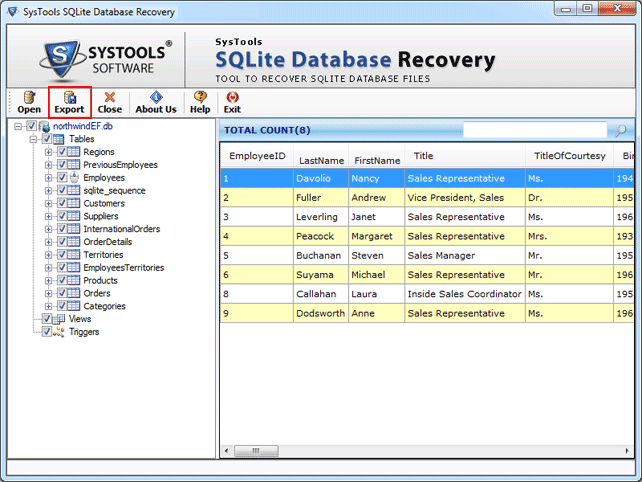

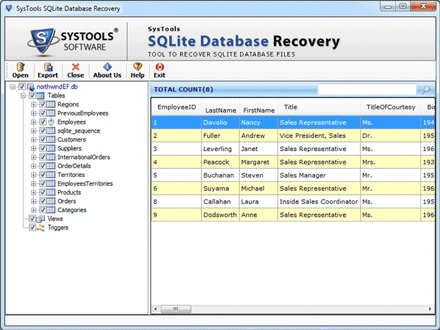

So the user can recover the database and can preview all these components and explore the architecture of sqlite using the Sqlite Recovery tool.
